1.Unwind
Auto-tension control system
Web guiding system

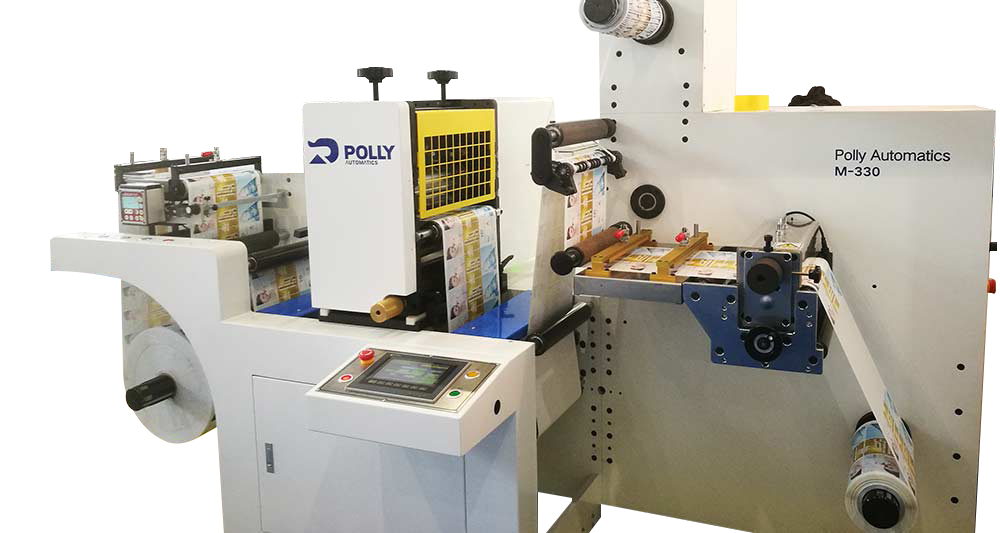

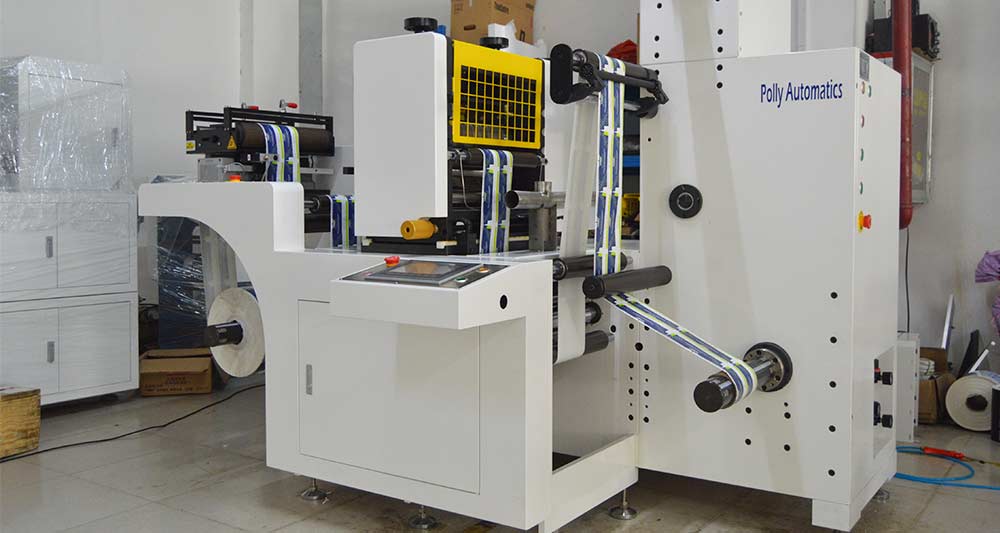

2.Semi-Rotary Die Cutting Unit
Servo Motor Driven.
Anvil and support cylinder are including in it.
Advance Pre-registration system
3.Waste Unit
4.Rewind
Independent motor driven
Auto-tension control system
Options
Optional Crush and Razor Blade
Adding convoyer for IML
Optional Sheeting Unit
Optional Snow-Ball Waste system.
Max Web Width Range: 100mm-340mm
Printing/Die Cutting Width Range: 100mm-330mm
Unwind/Rewind Shaft : 76’’(3’’)
Unwind Max OD: 700mm
Unwind Max OD: 700mm（Lower） 500mm(Upper)
Max Semi Rotary Speed : 60m/min
Max Full Rotary Speed : 120m/min
Semi Die cutting Repeat Range: 80mm-350mm
Registration Accuracy: ±0.15mm
Power supply:380V, 50/60 HZ, 20KW
Weight:3000KG
